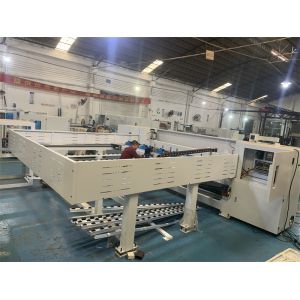

    Buy cheap NP330B Automatic CNC Beam Saw For Wood Panel Processing And Optimization from wholesalers

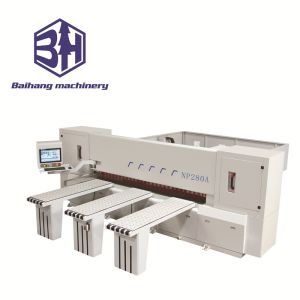

    • Buy cheap NP330B Automatic CNC Beam Saw For Wood Panel Processing And Optimization from wholesalers

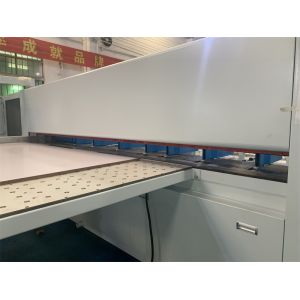

    • Buy cheap NP330B Automatic CNC Beam Saw For Wood Panel Processing And Optimization from wholesalers

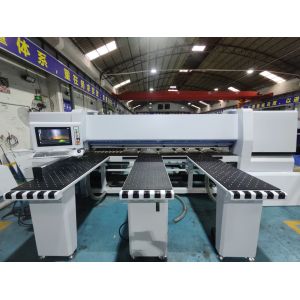

    • Buy cheap NP330B Automatic CNC Beam Saw For Wood Panel Processing And Optimization from wholesalers
    • Buy cheap NP330B Automatic CNC Beam Saw For Wood Panel Processing And Optimization from wholesalers

    NP330B Automatic CNC Beam Saw For Wood Panel Processing And Optimization

    Ask Lasest Price
    Brand Name : BaiHang
    Model Number : BHMNP330B
    Certification : CE
    Price : $18000 - $20500
    Payment Terms : T/T
    Supply Ability : 3000sets /year
    Delivery Time : 8-20Days
    • Product Details
    • Company Profile

    NP330B Automatic CNC Beam Saw For Wood Panel Processing And Optimization

    NP330B Automatic CNC Beam Saw for Wood Panel Processing and Optimization

    The NP330B is a high-performance, fully automatic beam saw designed for efficient and precise panel cutting in woodworking and furniture manufacturing. It integrates robust construction with advanced automation to deliver reliable, high-quality results.

    Key Advantages
    • High-Precision Cutting: Achieves a cutting accuracy of ±0.1mm with a servo positioning precision of 0.02mm, ensuring consistent and clean cuts for various panel materials.
    • Robust Mechanical Structure: The machine body is constructed from 25mm steel plate and square tubes, welded and stress-relieved to guarantee long-term stability and resistance to deformation.
    • Advanced Drive & Guidance System: Utilizes a rack-and-pinion drive for the saw carriage and German SLM 25mm square linear guideways, ensuring smooth, powerful, and precise movement even in dusty environments.
    • Automated Workflow: Features a servo-driven pneumatic clamping system and a ball-bearing air flotation table for effortless loading and positioning, enabling a seamless automated cutting cycle.
    • Intelligent Control & Connectivity: The user-friendly interface allows for easy programming and simulation of cutting plans. It offers extensive compatibility with major design and optimization software and includes an optional remote monitoring system.
    • Enhanced Safety & Environment: Equipped with safety photoelectric sensors and an emergency pull-wire stop at the feed area, along with a key-type dust curtain for a cleaner and safer workshop.

    Equipment Workflow
    1. The operator places a sawboard or uses automatic feeding
    2. Input required dimensions
    3. The loading process begins
    4. Clamps grip the board automatically
    5. Automatic operation sequence starts
    6. Automatic positioning and edge alignment
    7. Precision sawing process
    8. Automatic unloading and barcode scanning
    9. Manual code attachment
    10. Complete cutting task finished
    Technical Specifications
    ParameterSpecification
    Main motor power16.5kw (18.5KW optional)
    Power of auxiliary motor2.2kw
    Robot servo motor2.0kw
    Traction motor power1.5KW frequency converter speed regulation (optional servo)
    Maximum sawing width (transverse)2750mm / 3300mm
    Maximum sawing length (longitudinal)2600mm / 3300mm
    Maximum sawing thickness100MM
    Servo positioning accuracy0.02mm
    Sawing accuracy±0.2mm
    Advanced Features
    • INVT Servo with Taiwan Boton high-precision gear rack
    • The main saw guide uses circular guide rails for easy maintenance
    • Pneumatic floating ball table surface for effortless material handling
    • Automatic sawing stroke positioning reduces idle time
    • User-friendly control system with troubleshooting guidance
    • Compatible with various optimization and ERP management software
    • Rubber-coated flexible double-clamp robotic pressing blocks
    • Servo-controlled robotic arm with ±0.1mm positioning accuracy
    Frequently Asked Questions
    Q1: Can customized services be supported?

    A1: Yes, we can customize the color, size and logo you need.

    Q2: Where is your factory located?

    A2: We are a Chinese manufacturer in Qingdao city, Shandong province.

    Q3: Can you make the machine according to my design or prototype?

    A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.

    Q4: Is this machine easy to operate for first-time users?

    A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.

    Q5: What's your MOQ and delivery terms?

    A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.

    Contact us immediately for more product information!
    Special reminder: Different customers can customize models and configurations according to their needs. Due to product variety, orders require prepayment. We provide quotations based on customer requirements. Please confirm actual pricing with our staff according to product model configuration.
