Elevate your manufacturing capabilities with our state-of-the-art Fully Automatic Computerized Panel Saw. Engineered for demanding production environments, this machine delivers unmatched precision, remarkable efficiency, and robust reliability for furniture, cabinetry, and panel processing operations. It is the definitive solution for businesses aiming to optimize their cutting process from start to finish.

Streamlined, Intelligent Operation
Experience a seamless workflow designed for maximum productivity. The process begins with easy loading of panels onto the work surface. With a simple command, powerful clamps secure the material. The machine then takes over, executing a flawless automated sequence that includes precise positioning, intelligent edge squaring, high-speed sawing, and automatic offloading. Controlled by pre-set data or barcode scanning, it guarantees consistent, accurate results for every single cut, batch after batch.

Engineered for Excellence: Core System Highlights

• Unshakable Foundation: The machine's core is a heavily reinforced framework, constructed from premium steel and subjected to advanced welding and heat treatment processes. This creates an incredibly stable platform that resists vibration and ensures lasting precision.

• Smart Control Center: Operation is managed by a high-performance programmable logic controller (PLC) known for its rapid processing and operational stability. This is the reliable brain behind the machine's complex functions.

• Intuitive Human-Machine Interface: A user-centric control panel with a clear display makes operation simple and secure. The system provides step-by-step guidance, immediate fault alerts, and allows for easy programming and visualization of cutting patterns. It is built for seamless integration with a wide array of industry-standard design and optimization software.

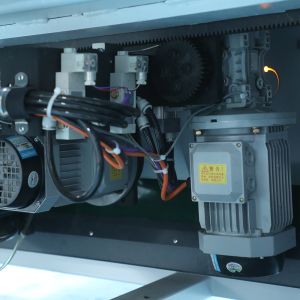

• High-Speed Servo Drive: Advanced servo motors provide the power for all movements, delivering lightning-fast response and exceptional positioning accuracy. This ensures rapid cycle times and clean, precise cuts.

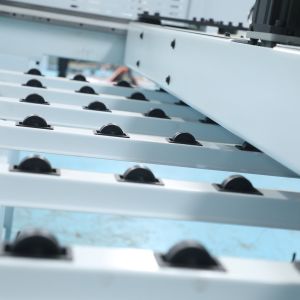

• Effortless Material Handling: An integrated air floatation table, equipped with ball bearings, allows operators to glide even the heaviest panels into position with minimal effort, drastically reducing setup time and physical strain.

Superior Components for Uncompromising Quality
We invest in quality where it counts. This panel saw is built with a selection of top-tier components to ensure long-term reliability and performance, including renowned brands for electrical controls, drive systems, and precision guides.

Technical Specifications

• Main Saw Motor Power: 15 kW

• Scoring Saw Motor Power: 2.2 kW

• Maximum Cutting Length: 2700 mm

• Maximum Cutting Thickness: 100 mm

• Maximum Cutting Width: 2700 mm

• Servo Positioning Accuracy: ±0.02 mm

• Cutting Accuracy: ±0.1 mm

• Main Saw Blade Diameter: 350 mm

• Main Saw Speed: 4800 rpm

• Traction Motor Power: 1.5 kW

• Cutting Speed: 0-100 m/min

• Air Pressure: 0.6-0.7 MPa

• Air Floatation Table Size: 1800x520 mm

• Overall Machine Dimensions: ~5860x5760x1800 mm

• Total Power: ~23 kW

• Display: 19-inch
