    High Precision CNC Six Side Drilling Machine For Cabinet And Furniture Multi Size Panel Processing

    Ask Lasest Price
    Brand Name : BH
    Model Number : BHM SKZ-612T
    Certification : CE
    Price : $14000 - $175000
    Payment Terms : T/T
    Supply Ability : 3000sets /year
    Delivery Time : 8-20Days
    • Product Details
    • Company Profile

    High Precision CNC Six Side Drilling Machine For Cabinet And Furniture Multi Size Panel Processing

    Six Sided CNC Driller For Cabinet And Furniture Multi Size Panel Processing

    The SKZ-612T Six-Sided Drilling Machine is an advanced CNC system engineered for precision woodworking operations. It features multi-directional boring capabilities with 9 top vertical drills, 8 horizontal drills, and 9 bottom vertical drills working simultaneously. With an X-axis travel speed reaching 150m/min and an 18,000 rpm routing spindle, it ensures high-efficiency production. This equipment accommodates panels ranging from 150mm to 3050mm in length and 35mm to 1200mm in width. It incorporates premium international components such as Taiwan Puteng drilling units and German-grade rack systems. Operated through a user-friendly Sanweijia CNC interface, the machine maintains consistent performance while featuring integrated dust removal and heavy-duty construction.

    Technical Specifications
    ItemValue
    External dimensions5500*2750*2300mm
    Total power19.5KW
    Weight3400kg
    Processing workpiece length80-3050mm
    Processing workpiece width35-1200mm
    Processing workpiece thickness10-60mm
    Maximum moving speed of X-axis150m/min
    Maximum Y-axis movement speed100m/min
    Maximum Z-axis movement speed45m/min
    Vertical drilling of upper drilling group9pcs
    Upper drilling group horizontal drilling8pcs
    Vertical drilling below9pcs
    Drilling bit power2.2kw*2
    Milling spindle methodEr3
    Milling spindle speed18000r/min
    Milling spindle powerSpindle 3.5kw*2
    Tool changing spindle tool/
    Workbench height900mm
    Vacuum suction port diameter200mm.100mm
    working voltage380v 50Hz
    Working pressure0.6-0.8Mpa
    Premium Components
    • Control System: Sanweijia
    • Electrical Components: LS
    • Drilling Units: Taiwan Puteng
    • Gear Rack: Germany
    • Ball Screw: Germany Fulei
    • Linear Guide Rails & Sliders: Taiwan Hiwin

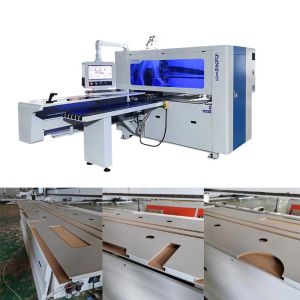

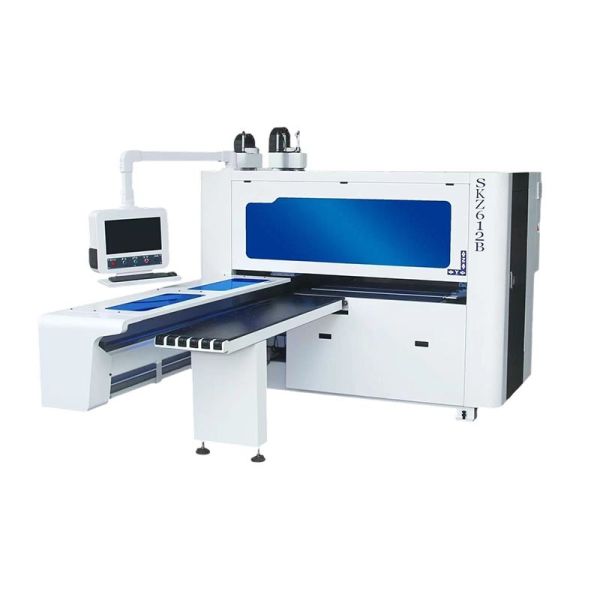

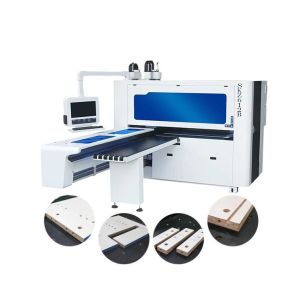

    SKZ-612B Six-Sided Drilling Machine front view SKZ-612B Six-Sided Drilling Machine side view SKZ-612B Six-Sided Drilling Machine operational view
    Frequently Asked Questions
    Can customized services be supported?
    Yes, we can customize the color, size, and logo you need.
    Where is your factory located?
    We are a Chinese manufacturer in Qingdao city, Shandong province.
    Can you make the machine according to my design?
    Yes. Our professional designers will create the optimal production plan for your requirements.
    Is the machine easy to operate for beginners?
    We provide instructional videos and manuals, plus free professional guidance until proficiency.
    What's your MOQ and delivery terms?
    Minimum order is 1 set, shipped directly to your designated port.
    How is your after-sales service?
    24/7 support with optional overseas installation services.
    What about repairs during warranty?
    Free online training and repair services for warranty issues.
