    MX5117B Wood Milling Machine Single Spindle Manual Vertical Milling Machine

    Ask Lasest Price
    Brand Name : BH
    Model Number : BHM-MX5117B
    Certification : CE
    Price : $600-$820
    Payment Terms : T/T
    Supply Ability : 3000sets /year
    Delivery Time : 8-20Days
    • Product Details
    • Company Profile

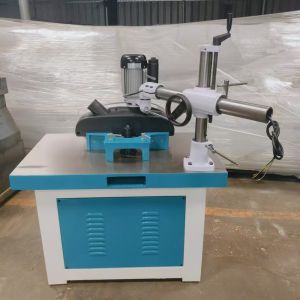

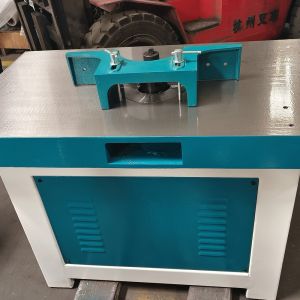

    MX5117B Wood Milling Machine Single Spindle Manual Vertical Milling Machine

    Single Spindle Manual Vertical Milling Machine

    Product Overview

    This machine is widely used for wood forming and milling, grooving and other processing. It has stable processing performance, compact and reasonable design of the movement structure, and beautiful appearance. Praised by customers.

    Technical Specifications
    Model
    BHM-MX5117B
    SRSZ-MX5117/2
    Working table size
    1100*680mm
    1600*700mm
    Max. milling thickness
    120mm
    120mm
    Spindle diameter
    35mm
    35mm
    Spindle speeds
    8000/10000rpm
    8000/10000rpm
    Power
    3kw/4kw/5.5kw/7.5kw
    8kw/11kw
    Weight
    300kg
    580kg
    Dimensions
    1100*680*820mm
    1680×700×820mm

    Features:
    1. High work efficiency, low energy consumption, suitable for all kinds of wood products, economical and practical.
    2. Made of excellent materials, in addition to the molding and milling of wood, trenching and other processing.
    3. The machine structure design is reasonable, improve the safety, adapt to the emergency stop and treatment of various
    emergencies.
    Key Features:

    • Different Arbor-type Milling Cutters can also be installed to create various patterns.

    • Cast iron workbench and fence are processed by precision milling and levelness and verticality correction, resulting in high accuracy.
    • Milling cutter spindle adopts a high-speed thickened spindle, after dynamic balance processing, stable, low noise
    • Four holes are reserved in the upper left corner of the workbench for installing a feeder, making the operation easier and more efficient.
    • Eye-catching red rotary switch, Solid and durable, Long service life
    • Powerful Pure Copper Motor, High Efficiency, Reliable, Durable, Low Noise, Long Service Life

    NOTE: Due to the uncertainty of the plug style and power cord length you require, this machine does not come with a plug, you will
    need to connect the plug and power cord yourself.

    MX5117B Wood Milling Machine Single Spindle Manual Vertical Milling Machine

    Frequently Asked Questions

    Q1: Can you provide customized services?
    A1: Yes, we can customize the color, size, and logo you require.


    Q2: Where is your factory located?
    A2: We are a Chinese manufacturer in Qingdao, Shandong Province.


    Q3: Can you make the machine according to my design or prototype?
    A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you are ordering from us.


    Q4: This is my first time using this machine. Is it easy to operate?
    A4: An instructional video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.


    Q5: What is your minimum order quantity and delivery?
    A5: Our minimum order quantity is 1 machine. We can ship the machine directly to your country's port. Please let us know your port name. We will provide you with the best shipping and machine price.
