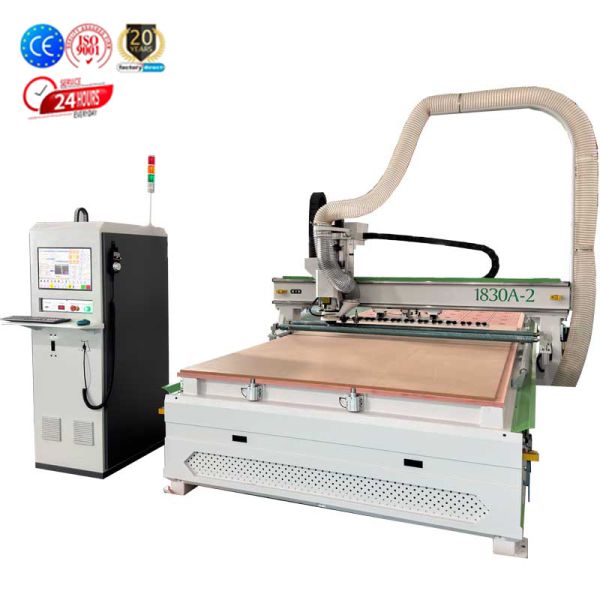

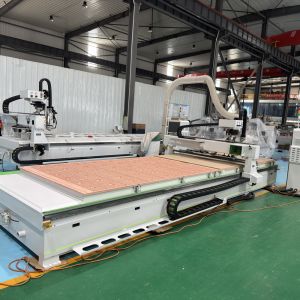

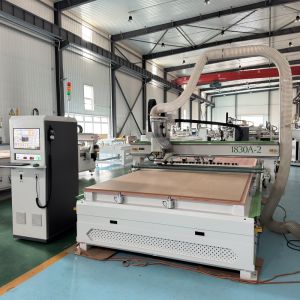

1830 Dual Table CNC Nesting Machine For Panel Processing With
Cutting Drilling And Milling
Product Overview
- The machine can carve,cut,router,punch,slot,chamfer,and cut
irregular shapes,One machine can handle multiple processes.
- Machine speed is fast,production is high,accuracy is accurate,dust
is low,automation is efficient and reliable.
- Suitable for customized and panel furniture production
lines,wardrobes,cabinets,and office furniture.
- Features an optional dual-table (duplex) working system, allowing
loading and unloading on one side while the machine processes on
the other, significantly reducing idle time and maximizing
productivity for continuous batch production.
- Integrated with smart dust extraction and follow-path air blowing
systems, it maintains a clean working environment and ensures
high-quality surface finishes free from debris, supporting
eco-friendly and workshop-friendly operation.

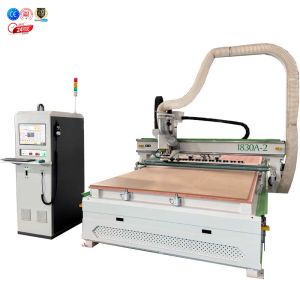

Core Advantage: Dual-Table Synergy, Doubled Efficiency
The most prominent feature of this model is its dual-worktable design. This revolutionary layout allows for the loading and unloading of
materials on one table while machining is actively occurring on the
other. This "simultaneous machining and material handling" mode
enables seamless production continuity, maximizes spindle
utilization, and significantly reduces overall production cycle
times—making it exceptionally suited for the continuous operation
of large-volume orders.
Technical Specifications
| Component | Specification |
|---|
| Machine size | 6900 * 2570 * 2100 mm |
| Processing Size (per station) | 3050 * 1830 * 18 mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
| Tool Capacity | 12 Tools (Linear ATC) |
Customization Available: Models and configurations can be
customized to customer requirements. Please contact our team for
specific pricing based on your desired configuration.
Key Features
1. True Unmanned Production Capability
Integrates an automated material handling logic with the dual-table
system. While one table is under processing, the other can be
safely loaded/unloaded. This continuous workflow, managed by the
intelligent controller, dramatically reduces operator dependency
and enables extended lights-out operation for mass production.
2. All-Scenario Processing Versatility
Engineered as a universal solution for panel processing, it
seamlessly switches between heavy-duty cabinet carcass cutting and
high-speed, fine-detail door engraving. The powerful 9KW spindle
and 12-tool magazine eliminate the need for secondary setups or
specialized machines.
3. Rigid-Body Engineering for Zero-Tolerance Precision
The heavily welded steel frame, stress-relieved through annealing
and vibration aging, provides an unshakable foundation. Machined as
a single unit on a 5-face machining center, it guarantees the
permanent alignment of guideways and racks, ensuring micron-level
accuracy for the machine's entire lifespan.
4. Proactive Maintenance & Serviceability
Designed for minimal downtime. Key components like solenoid valves
are centrally located for instant access. The centralized
lubrication system and easily traceable cable drag chains
facilitate quick inspections and routine maintenance, maximizing
machine uptime.
5. CleanTech Workshop Environment
The high-efficiency dust collection system, featuring a patented
hood design, captures over 99% of particulate matter. Combined with
the optional follow-path air blast, it effectively eliminates dust
during routing, contributing to a cleaner, healthier workshop and
superior workpiece finish.
Enhanced Functionality
- Combines door panel and cabinet machining capabilities
- Rapid plunge function for efficient drilling operations
- Form sequencing processing for batch program execution
- Rear-start function for convenient operation from loading position
Ideal For
- Furniture manufacturers requiring high-volume production of
cabinets and doors.
- Panel processing shops looking to maximize output and reduce
delivery times.
- Any business where minimizing machine idle time is critical to
profitability.
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong
province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable
design and production plan for your requirements.
Q4: Is this machine easy to operate for first-time users?
A4: We provide guide videos and English instruction manuals with
the machine, plus free professional guidance until you can operate
proficiently.
Q5: What's your MOQ and delivery terms?
A5: Minimum order quantity is 1 set. We ship directly to your
country's port - please provide your port name for accurate
shipping rates.
Q6: How is your after-sales service?
A6: Our sales team is available 24/7. We provide overseas
installation services and free online training.
Q7: What if my machine needs repair?
A7: We offer free online support. For major issues during warranty
period, we provide repair services.
