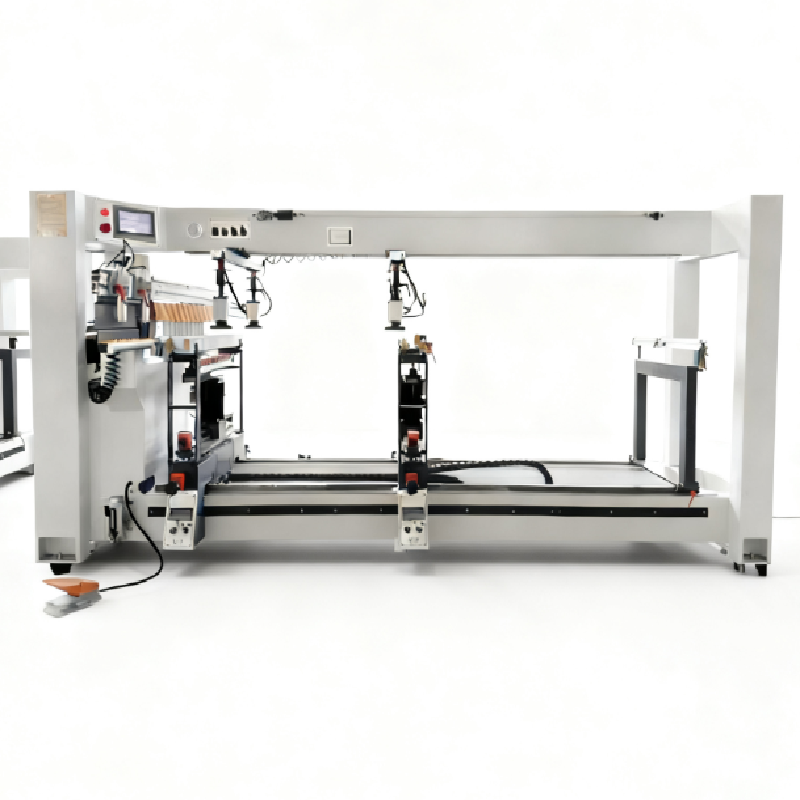

Multi Axis Three Rows Drill Machine For Woodworking Drilling

Product Overview

The Three Row Drilling Machine is a high-efficiency, multi-spindle drilling system engineered for the panel processing industry. Its core structure is built with thickened square tubes that have undergone stress-relief aging treatment, guaranteeing permanent durability and resistance to deformation. The machine features three independent drilling rows with a total of 21 spindles, capable of performing simultaneous, multi-position drilling operations. A key highlight is its extended vertical drilling capacity, with a hole spacing range from 140mm to 2400mm, making it ideally suited for processing long-sized panels. Controlled by a user-friendly PLC and touchscreen interface, it significantly enhances operational simplicity and production automation.

Configuration parameters

Product Advantages

1.Exceptional Structural Rigidity: The frame, constructed from stress-relieved, thickened square tubes, ensures long-term dimensional stability and superior drilling accuracy.

2.High-Efficiency Drilling: The configuration of three rows and 21 spindles operating at 2800 RPM allows for simultaneous multi-hole processing, drastically boosting productivity.

3.Outstanding Flexibility and Reach: The vertical drill rows can swivel 90 degrees and be adjusted forwards/backwards via a lead screw, providing great versatility for complex drilling patterns and an extended working range for long boards.

4.Intelligent and User-Friendly Control: The integrated PLC and touchscreen system allows for intuitive operation and easy parameter setting, reducing the learning curve and potential for error.

5.Reliable Core Components: Utilization of reputable Chinese electrical brands like CHINT and Tengen, paired with high-quality drilling units, motors, and cylinders, ensures stable performance and low maintenance requirements.

Product Applications

This Three Row Drilling Machine is primarily used in the panel furniture, office furniture, and cabinet manufacturing sectors, ideal for high-volume, precision drilling tasks.

1.Suitable Materials: Solid wood, fiberboard, particle board, MDF, and other engineered wood panels.

2.Typical Application Scenarios:

• Drilling connector holes for side panels and shelves in wardrobes and cabinets.

• Handling drilling operations on extra-long panels such as table tops and doors.

• Batch production of various hardware connection holes (e.g., mini-fit) for panel furniture assembly.

Details display

FAQ

Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most suitable design and production plan for the machine you want to order from us.
Q4: This is my first time using this machine. Is it easy to operate?
A4: A tutorial video showing how to use the machine and an English instruction manual are sent with the machine. If you still have any questions, we will provide you with free professional guidance until you can use the machine well.
Q5: What is your minimum order quantity and delivery quantity?
A5: Our minimum order quantity is 1 machine. We can send the machine directly to your country's port. Please let us know your port name. We will provide the best shipping cost and machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide overseas installation services.
Q7: What if my machine breaks down? Can you help me repair it?
A7: Yes. We have free training online. If your machine has a major problem during the warranty period, we can repair it.
