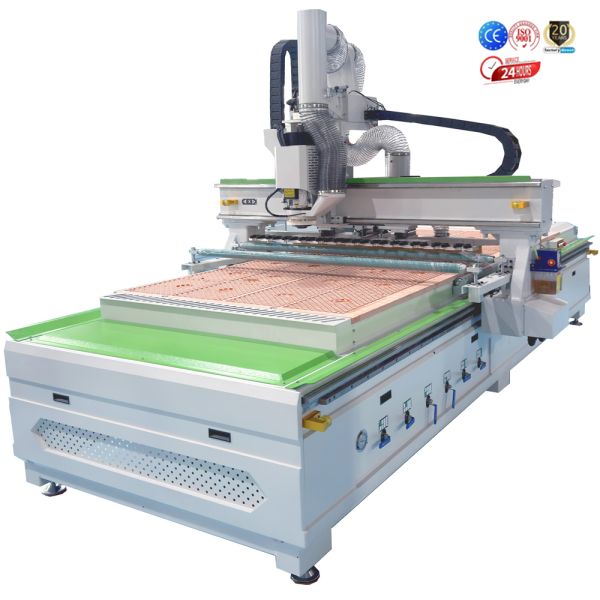

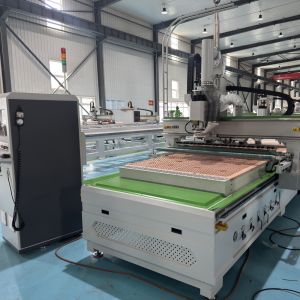

1330 Tool Auto Change CNC Router with Press Roller for Cabinet &
Door Making
Product Overview
The 1330A Processing Center is a high-performance CNC machining
solution, expertly engineered for versatile and efficient
production of cabinet cases and doors. Combining robust
construction with precision components, it delivers powerful
performance, high-speed operation, and exceptional reliability for
demanding manufacturing environments.
Technical Specifications
| Component | Specification |
|---|
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220*18mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Customization Available: We offer model and configuration customization based on customer
requirements. Orders require prepayment. Please contact our team
for specific pricing based on your desired configuration.
Key Features
 | Control System: Taiwan LNC-Buyu control system. Stable, fast response,
user-friendly interface for simpler, more intuitive operation. |  | Zoned vacuum adsorption table with screw fixation. Patented design, stronger suction, prevents
small boards from shifting. |
 | Spindle: CC / 9KW high-power automatic tool change spindle,
18000-24000r/min. High cutting torque, fast speed, smooth
operation. |  | Linear 12-tool magazine. Meets customer needs for processing both cabinets and doors.
Currently the highest tool capacity on the market. |
 | XYZ drive motors: Servo motors 1.5KW. Drives: Servo drives (matched to the above
motors). |  | Patented dust collection hood. Excellent dust collection effect, even cleans dust from the
cutting groove. |
 | Reducer: Japan Shimpo reducer, using helical planetary structure design for
higher precision and longer service life. |  | Steel beam. Both the bed and beam undergo quenching and shot blasting,
processed by a 5-face CNC machining center. |
 | Guide Rails: Taiwan steel guide rails (25MM), higher precision, higher
hardness. |  | 11KW vacuum pump. High-power adsorption ensures small boards do not shift. |
 | High precision, 1.5 module P&C rack and pinion transmission. Fast speed, high accuracy, wear-resistant material. |  | Drag chain: Imported layered and separated type. Each wire is separated
individually for easy troubleshooting. |
 | Cables: Hengtong high-flex shielded drag chain cables, suitable for large
seasonal temperature differences across regions. |  | Solenoid valves controlling the equipment's cylinders are all centralized at the
rear of the beam for easy problem identification. |
 | Main electrical components: Domestic brand Delixi electrical components. Quality assured,
readily available nationwide. |  | Follow-path air blow device. Truly achieves dust-free and environmentally friendly cutting. |
 | Inverter: Taiwan Fuling inverter, fast response, and more stable. |  | Dual press rollers press the sheet, applying even pressure to ensure dimensional
accuracy during cutting. |
 | Centralized lubrication system. Timed, automatic, metered oiling extends the drive system's
service life. |  | Equipped with keyboard and mouse for convenient operation. |
Control System: Equipped with a LNC (Luster) Taiwan CNC system, renowned for its
stability, rapid response, and user-friendly interface for
simplified operation.
Spindle System: Features a powerful 9kW automatic tool-changing spindle with a
speed range of 18,000-24,000 RPM, ensuring strong cutting torque
and high-speed machining capabilities.
Drive System: XYZ axes utilize 1.5KW servo motors and matched servo drives,
paired with Japanese Shimpo helical planetary gear reducers for
high precision and extended service life.
Linear Motion: High-precision 25mm Taiwan-made steel guideways and 1.5-module
P&C rack and pinion transmission (X/Y axes) provide high
rigidity, speed, and positioning accuracy.
Work Table: Patented zoned vacuum adsorption table with screw fixing ensures
powerful hold-down force, effectively preventing movement of
smaller workpieces.
Tool Magazine: Patented inline 12-station automatic tool changer, designed for
high-mix processing of cabinets and doors. Tool holders feature a
rear spring mechanism and high-quality PE material.
Dust Control: Patented dust extraction hood offers excellent chip removal, even
from cutting grooves. An optional air-blowing version is available
for near-dust-free cutting.
Press Roller System: Dual press rollers apply uniform pressure across the material
surface, ensuring dimensional accuracy during cutting and
engraving, and maintaining material flatness.
Electrical Components: Key electrical parts utilize reputable Chinese brand Delixi for
reliability and easy nationwide availability. A Taiwan Fuling
inverter ensures stable and responsive spindle control.
Cable Management: Uses Hengtong high-flex shielded drag chain cables, suitable for
varying seasonal temperatures. Imported layered drag chains
separate individual wires for easy maintenance.
Lubrication & Assembly: Centralized automatic lubrication system ensures timely oiling of
guideways and ball screws. Pneumatic solenoid valves are centrally
located on the beam for easy access and troubleshooting.
Vacuum System: Powerful 11KW vacuum pump provides strong adsorption force.
Structural Framework: The gantry and bed, constructed from steel, undergo quenching,
shot blasting, and are machined by a 5-face machining center to
ensure rigidity and precision under heavy loads. Stress relief
processes include annealing for the beam/arms and vibration aging
for the bed.
Enhanced Functionality
1. Combines door panel and cabinet machining capabilities
2. Rapid plunge function for efficient drilling operations
3. Form sequencing processing function for streamlined workflow
4. Start-from-behind function for convenient operation
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong
province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable
design and production plan for your requirements.
Q4: This is the first time I use this kind of machine, is it easy
to operate?
A4: We provide guide videos and English instruction manuals with
the machine. Our team offers free professional guidance until you
can operate the machine proficiently.
Q5: What's your MOQ and delivery?
A5: Minimum order quantity is 1 set. We ship directly to your
country's port - please provide your port name for the best
shipping rates and machine pricing.
Q6: How is your after sales service?
A6: Our sales team is available 24/7. We also provide overseas
installation services.
Q7: If my machine is broken, can you repair it for me?
A7: Yes. We offer free online training. For major issues during
warranty period, we provide repair services.
