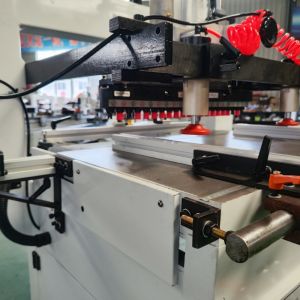

Woodworking Double Rows Multi Spindle Horizontal Cabinet Wood
Boring Machine
Product Overview
The Double Row Drill is a high-efficiency drilling machine
engineered for high-productivity, multi-hole processing. It
features a robust dual-motor system (1.5kw x 2) and a dual-spindle
arrangement with 21 drill bits per row (42 total), enabling
simultaneous drilling operations for significantly reduced cycle
times. Operating at a speed of 2840r/min within a substantial
working space of 2360x1600x1600mm, this sturdy 350kg machine
delivers reliable performance. With a hole spacing range of
32-1700mm, a maximum drilling diameter of 35mm, and a depth of
60mm, it is a versatile solution for industries such as furniture
manufacturing and construction.
Product Parameters
| Working space | 2360×1600×1600mm |
| Motor power | 1.5kw*2 |
| Speed | 2840r/min |
| Machining hole spacing | 32-1700mm |
| Number of drill row | 21*2 |
| Maximum drilling depth | 60mm |
Product Advantages
1.Dual-Row High Efficiency: The twin-motor drive and dual-row drill
head design allow for simultaneous drilling of multiple holes,
dramatically increasing production output.
2.Precise Spacing Control: A wide hole spacing range (32-1700mm)
provides the flexibility to meet various layout specifications with
high accuracy.
3.Powerful Drilling Capacity: Capable of drilling holes up to 35mm
in diameter and 60mm in depth, suitable for a wide range of
materials.
4.High-Speed Stable Operation: A rotational speed of 2840r/min,
combined with a heavy-duty and stable frame, ensures smooth
operation with minimal vibration.
5.User-Friendly Design: The spacious work area and rational
structure facilitate easy workpiece loading, unloading, and routine
maintenance.
Product Applications
1.Panel Furniture Manufacturing: Ideal for processing parallel rows
of connector holes in panels for wardrobes, kitchen cabinets, and
office furniture.
2.Door & Staircase Production: Used for efficiently creating
multiple hinge holes in doors and assembly holes in staircases.
3.Construction & Decoration: Suitable for batch drilling of
materials such as aluminum profiles and light gauge steel studs.
4.Packaging & Pallet Manufacturing: Enables rapid drilling of hole
patterns in wooden or plastic pallets.
Details display
Hand WheelCan adjust the working height.
45°AdjustmentIt can adjust working in horzontal ,vertical and 45°
Drill BitsSingle boring machine with21 drill bits.
Pressure CylinderTo insure the panel fixed wellwhen working.
Frequently Asked Questions
Q1: Can you provide customized services?
A1: Yes, we can customize the color, size, and logo you require.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao, Shandong Province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have a professional designer who can design the most
suitable design and production plan for the machine you are
ordering from us.
Q4: This is my first time using this machine. Is it easy to
operate?
A4: A tutorial video showing how to use the machine and an English
instruction manual are sent with the machine. If you still have any
questions, we will provide you with free professional guidance
until you can use the machine well.
Q5: What is your minimum order quantity and delivery?
A5: Our minimum order quantity is 1 machine. We can ship the
machine directly to your country's port. Please let us know your
port name. We will provide you with the best shipping cost and
machine price.
Q6: How is your after-sales service?
A6: Our sales staff are online 24 hours a day. We can also provide
overseas installation services. Q7: If my machine breaks down, can
you help me repair it?
