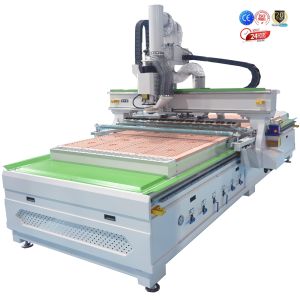

Product Highlights

1. Dual Functionality: Capably machines both cabinet bodies and door panels, offering significant production flexibility.

2. Efficiency Enhancements: Features like rapid plunge drilling, batch job sequencing (processing multiple files in sequence without manual reloading), and the rear-start function significantly reduce non-cutting time and boost overall productivity.

Customization Available: Models and configurations can be customized to customer requirements. Please contact our team for specific pricing based on your desired configuration.

• Control System: Equipped with a stable and user-friendly LNC-B台湾宝元控制系统, ensuring rapid response and easy operation.

• Spindle: Features a powerful 9kW Automatic Tool Change (ATC) Spindle with a speed range of 18,000-24,000 RPM, providing strong cutting torque and high-speed capability.

• Drive System: Utilizes custom 1.5KW servo motors and matching servo drives for the X, Y, and Z axes, ensuring precise motion control.

• Transmission: High-precision 1.5-module P&C rack and pinion drive for the X and Y axes, paired with Japanese SHIMPO斜齿行星式减速机, offers high speed, accuracy, and exceptional durability.

• Structure & Guideways: The steel frame and gantry are stress-relieved and processed via a 5-face machining center for enhanced stability and accuracy. 25mm thick Taiwan-sourced steel guideways provide high rigidity and precision.

• Tool Changer: Patented linear 12-tool magazine with high-quality PE tool holders, designed to handle diverse tooling requirements for both cabinets and doors efficiently.

• Work Table: Patented zoned vacuum adsorption table with screw fixing ensures strong holding force, preventing movement of smaller workpieces.

• Dust Control: Features a patented dust cover with excellent extraction efficiency. An optional air-blowing version is available for near-dust-free cutting.

• Vacuum System: Powered by an 11KW vacuum pump, guaranteeing powerful suction across the table.

• Electrical & Auxiliary Components: Key electrical components from Delixi ensure reliability and easy maintenance. Other highlights include a Fuling富凌 inverter, centralized lubrication, centralized solenoid valve arrangement for easy maintenance, high-flex shielded drag chain cables, and path-following air blowing for cleaner cuts.

• Convenience Features: Includes keyboard and mouse. Offers backend start functionality, allowing operation from the loading side to save time.

• Combines door panel and cabinet machining capabilities
• Rapid plunge function for efficient drilling operations
• Form sequencing processing for batch program execution
• Rear-start function for convenient operation from loading position

• Furniture manufacturers requiring high-volume production of cabinets and doors.
• Panel processing shops looking to maximize output and reduce delivery times.
• Any business where minimizing machine idle time is critical to profitability.
